Plastic (PE) Water Supply Pipe

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price
You may also be intersted in
gas supply pipepvc tubespe pipes

Contact us

Eagleflying Plastic Composite Pipe Ltd.
[China]

Address
No. 5225 Daye Highway, Shanghai City, China Shanghai Shanghai
Phone
86-183-01777631
Contact name
Jacky

Quick Information

  • Brand Name: Eagleflying
  • Place of Origin: China
  • Material : PE
  • :

Description

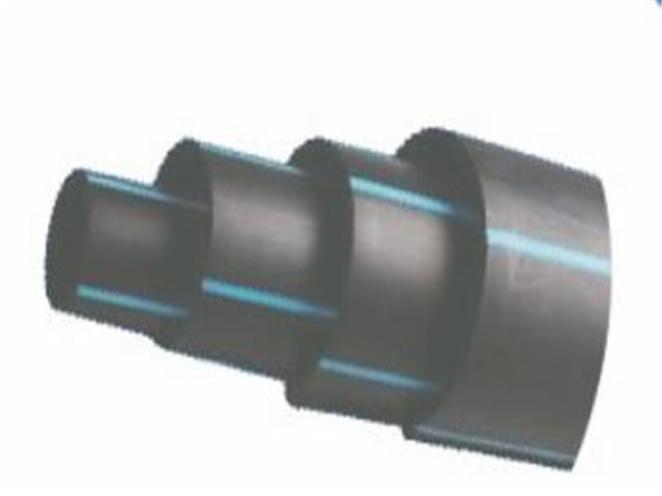

Plastic (PE) water supply pipe

The PE water supply pipe and pipe fittings are produced by imported German equipment with high plasticizing and extrusion performance and imported HDPE raw materials: PE80, PE100. Excellent quality, in addition to the general plastic pipe light weight, high strength, corrosion resistance, non-scaling, long service life, easy recycling and other advantages.

The PE water supply pipe also has the following important features:

● Good hygienic performance, no heavy metal additives, in line with GB/T17219 safety evaluation requirements;

● Strong impact resistance, good low temperature resistance, low temperature embrittlement temperature can reach - 70°C;

● Pipeline connection adopts hot-melt connection or electrofusion connection, which ensures the unity of the material structure of the interface and the pipe body itself, realizes the integration of the joint and the pipe material, and does not leak in the use process;

Plastic (PE) water supply pipe

● Standard: PE water supply pipe material strictly implements GB/T13663-2000, and refers to ISO4427-1996. The hygienic index conforms to GB/T 17219.

● Series and specifications: PE water supply pipe materials are divided into two series, PE80 and PE100, according to the raw materials used. The PE80 series can be divided into five grades: SDR11, SDR13.6, SDR17, SDR21 and SDR33. The PE100 series can be divided into five grades: SDR11, SDR13.6, SDR17, SDR21 and SDR26.

● Length: The production of straight pipe is generally 6 meters, 9 meters or 12 meters, can also be supplied according to customer requirements. Pipes with outer diameter less than 63mm can also be coiled, and the length can be 50m, 100m or 200m. They can also be supplied according to customer's requirements.

Performace features of plastic (PE) water supply pipe

No.





Item



Performance requirement




1
20°C Hydrostatic strength (Circumferential stress PE80: 9.0MPa, 100h; Circumferential stress PE100: 12.4MPa, 100h)
No rupture, No leakage



2
80°C Hydrostatic strength (Circumferential stress PE80: 4.6MPa, 165h; Circumferential stress PE100: 5.5MPa, 165h)
No rupture, No leakage
3
80°C Hydrostatic strength (Circumferential stress PE80: 4.0MPa, 1000h; Circumferential stress PE100: 5.0MPa, 1000h)
No rupture, No leakage
4
Break elongation %
≥350
5
Longitudinal retraction rate (110°C), %
≤3
6
Oxidation induction time (110°C), min
≥20
7
Weatherability (After pipe accepts aging energy accumulatively ≥3.5GJ/m2)


80°C Hydrostatic strength (165h)
No rupture, No leakage
Break elongation %
≥350
800
Oxidation induction time (110°C), min
≥10
Note: Executive standard GB/T13663-2000
Weatherability only applies to blue pipes.

PE-80 grade PE pipe norminal pressure and specification size

Norminal outer diameter DN (mm)
SDR33

SDR21

SDR17

SDR13.6

SDR11

Norminal pressure PN, MPa

0.4
0.6

0.8
1.0

1.25
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
20
2.3
0.14
25
2.3
0.17
32
3.0
0.28
40
3.7
0.43
50
4.6
0.67
63
4.7
0.89
5.8
1.07
75
4.5
1.03
5.6
1.26
6.8
1.50
90
4.3
1.20
5.4
1.49
6.7
1.81
8.2
2.17
110
5.3
1.79
6.6
2.20
8.1
2.67
10.0
3.22
125
6.0
2.31
7.4
2.82
9.2
3.44
11.4
4.18
140
4.3
1.90
6.7
2.90
8.3
3.54
10.3
4.31
12.7
5.22
160

4.9

2.47
7.7
3.80
9.5
4.63
11.8
5.64
14.6
6.83
180
5.5
3.12
8.6
4.76
10.7
5.87
13.3
7.15
16.4
8.80
200
6.2
3.90
9.6
5.92
11.9
7.22
14.7
8.80
18.2
10.86
225
6.9
4.87
10.8
7.49
13.4
9.17
16.6
11.38
20.5
13.74
250
7.7
6.05
11.9
9.15
14.8
11.26
18.4
14.00
22.7
16.93
280
8.6
7.55
13.4
11.57
16.6
14.40
20.6
17.58
25.4
21.21
315
9.7
9.73
15.0
14.55
18.7
18.24
23.2
22.26
28.6
26.89
355
10.9
12.16
16.9
18.81
21.1
23.21
26.1
28.23
32.2
34.11
400
12.3
15.45
19.1
23.99
23.7
29.37
29.4
35.81
36.3
43.32
450
13.8
19.48
21.5
30.34
26.7
37.22
33.1
45.39
40.9
54.90
500
15.3
23.97
23.9
37.49
29.7
46.00
36.8
56.04
45.4
67.72
560
17.2
30.82
26.7
46.95
33.2
57.60
41.2
70.29
50.8
84.90
630
19.3
38.90
30.0
59.31
37.4
72.97
46.3
88.87
57.2
107.56
710
21.8
49.53
33.9
75.54
42.1
92.64
52.2
112.94
800
24.5
62.68
38.1
95.75
47.4
117.47
58.8
143.33
900
27.6
79.56
42.9
121.22
53.3
148.41
1000
30.6
98.02
47.7
149.82
59.3
183.74
1200
36.7
140.93
57.2
215.44

*This series of pipes is mainly used for urban water supply projects. Nominal pressure refers to the maximum allowable working pressure of pipes conveying water at 20°C.

*The weight of the above table is calculated according to the average density of 0.955g/cm3. The outer diameter and wall thickness are half of the nominal value plus the limit deviation.

PE-1000 grade PE pipe norminal pressure and specification size

Norminal outer diameter DN (mm)
SDR26

SDR21

SDR17

SDR13.6

SDR11

Norminal pressure PN, MPa

0.6
0.8

1.0
1.25

1.6
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
Norminal wall thickness (mm)
Weight (kg/m)
20
2.3
0.14
25
2.3
0.17
32
3.0
0.28
40
3.7
0.44
50
4.6
0.68
63
4.7
0.9
5.8
1.08
75
4.5
1.03
5.6
1.26
6.8
1.51
90
4.3
1.2
5.4
1.49
6.7
1.82
8.2
2.18
110
4.2
1.46
5.3
1.8
6.6
2.21
8.1
2.69
10.0
3.23
125
4.8
1.90
6.0
2.32
7.4
2.84
9.2
3.45
11.4
4.2
140
5.4
2.38
6.7
2.92
8.3
3.56
10.3
4.34
12.7
5.25
160
6.2
3.11
7.7
3.82
9.5
4.65
11.8
5.67
14.6
6.87
180
6.9
3.90
8.6
4.79
10.7
5.9
13.3
7.18
16.4
8.84
200
7.7
4.82
9.6
5.95
11.9
7.26
14.7
8.85
18.2
10.91
225
8.6
6.05
10.8
7.53
13.4
9.22
16.6
11.44
20.5
13.81
250
9.6
7.52
11.9
9.2
14.8
11.31
18.4
14.07
22.7
17.02
280
10.7
9.4
13.4
11.63
16.6
14.48
20.6
17.67
25.4
21.32
315
12.1
11.94
15.0
14.63
18.7
18.34
23.2
22.38
28.6
27.03
355
13.6
15.11
16.9
18.91
21.1
23.33
26.1
28.38
32.2
34.29
400
15.3
19.12
19.1
24.12
23.7
29.52
29.4
36.00
36.3
43.55
450
17.2
24.69
21.5
30.50
26.7
37.42
33.1
45.63
40.9
55.19
500
19.1
30.48
23.9
37.68
29.7
46.24
36.8
56.46
45.4
68.08
560
21.4
38.2
26.7
47.19
33.2
57.9
41.2
70.46
50.8
85.34
630
24.1
48.46
30.0
59.62
37.4
73.35
46.3
89.64
57.2
108.1
710
27.2
61.62
33.9
75.94
42.1
93.12
52.2
113.53
800
30.6
78.14
38.1
96.25
47.4
118.08
58.8
144.08
900
34.4
98.75
42.9
121.85
53.3
149.18
1000
36.2
121.92
47.7
150.6
59.3
184.7
1200
45.9
175.59
57.2
216.56

*This series of pipes is mainly used for urban water supply projects. Nominal pressure refers to the maximum allowable working pressure of pipes conveying water at 20°C.

*The weight of the above table is calculated according to the average density of 0.955g/cm3. The outer diameter and wall thickness are half of the nominal value plus the limit deviation.



Product Image

  • Plastic (PE) Water Supply Pipe image
